Provide Solutions for Smart Parcel Lockers
1. Waterproof rating: IP66.
2. Motor-driven: low power consumption, energy-efficient & eco-friendly.
3. Voltage can be selected as 4-7.5V or 8-24V.
4. Working life: 200,000+ times, reducing after-sales and replacement costs.
5. Holding force is 5,500N, compliant with the EN1627 anti-theft standard.
6. Heavy duty lock.
7. Anti-finger function, users can not close the lock by hand/tool, only the door pushed to close.


Versatile installation and integration
8-24v DC operation and 2-6 wire input options, and the ability to accommodate multiple input signals.
Environmental protection
Motor-driven, low power consumption, energy-efficient & eco-friendly.
Strong and sturdy
Proven rotary latch design provides durable, vandal-resistant security.
Remote control
APP unlocking record, access to aloperations performed by relevant personnel, including a completeaudit report.

Smart Access Electronic Rotary Latch

Metal cabinet lock


Smart Access Electronic Rotary Latch
Technical Parameter
Product Name: Smart Access Electric Rotary Latch
Product Model: KR-S79N
Lock Body Material: 304 Stainless Steel
Size: 79*82.5*19.2mm
Voltage: 4-7.5V or 8-24V
Drive Mode: Motor
Power Consumption: 0.96w
Working Temperature: -20℃~+65℃
Protection Class: IP66
Working Life: 200,000 times
Tensile Strength: 5,000N
Certification: CE; RoHS; FCC

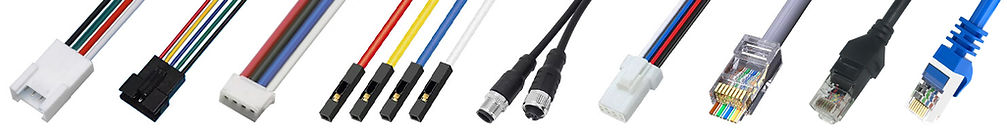

All locks support customizing wires and connectors.
Applicable Industry Scenarios
Medical, Manufacturing, Retail, Office, School, Hospitality & Tourism, Warehousing, Logistics Management
